Overview

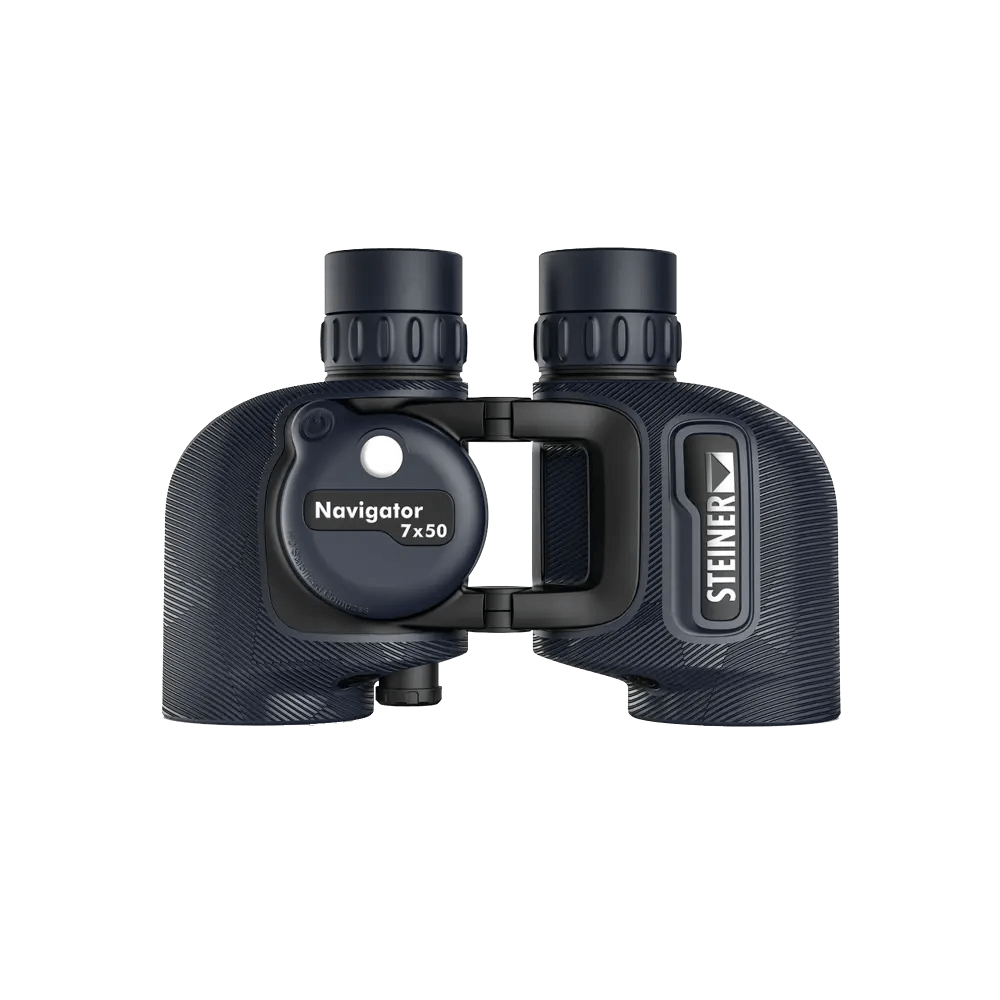

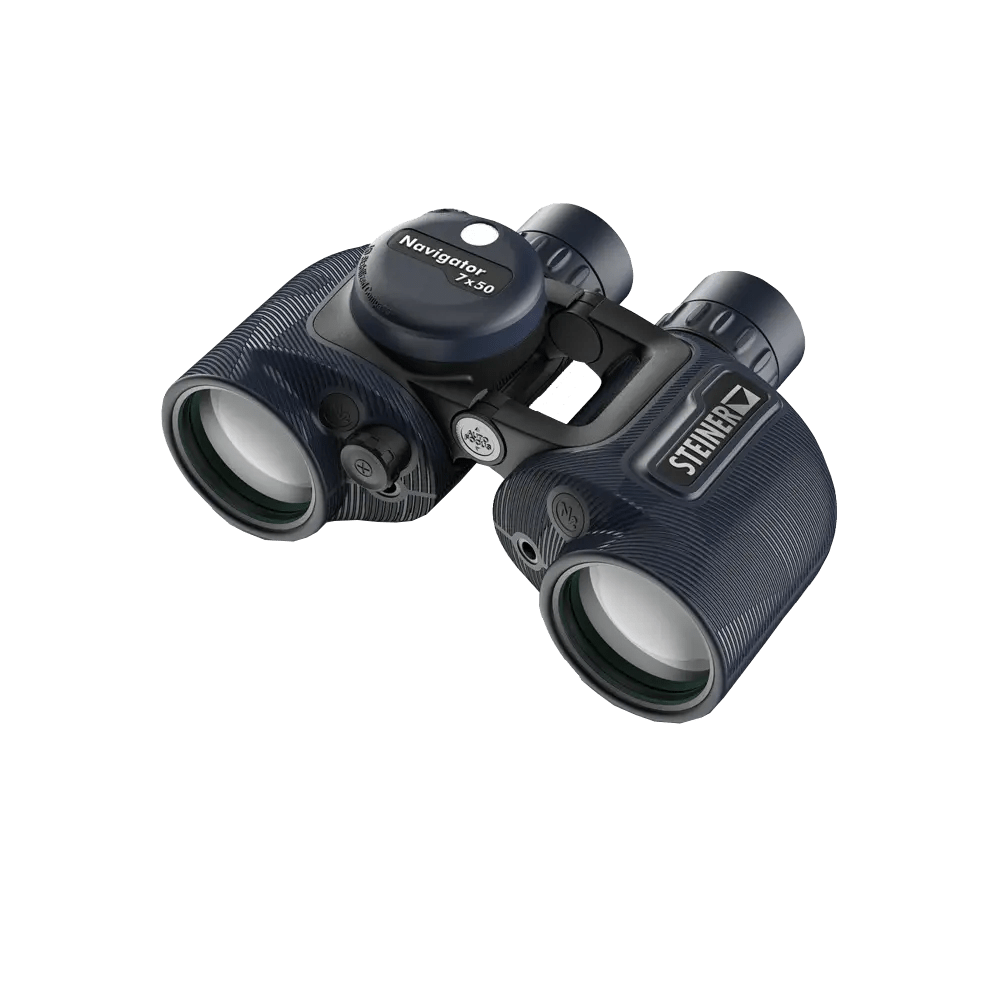

The Steiner Navigator with Compass 7x50 Binoculars 2343 brings the trusted performance of Steiner’s marine binoculars into a new generation with advanced features tailored for demanding nautical environments. Designed for maximum comfort and control, the innovative open-bridge system enhances handling—especially on deck—while the textured NBR rubber armoring ensures a secure grip in all weather conditions.
Built for clarity and reliability, these binoculars deliver sharp, high-contrast images from 20 meters to infinity without the need for constant refocusing. An integrated, large analog compass—fluid-dampened and illuminated—helps you maintain your heading with ease, making it an essential tool for navigation.
Key Features:
-
Open-Bridge Design: Lightweight and ergonomic for improved handling and grip
-
Auto Focus System: Delivers consistently sharp images from 20m to infinity—no refocusing required
-
Integrated Illuminated Compass: Large, analog, and fluid-dampened for smooth and accurate navigation
-
Waterproof and Submersible: Sealed and nitrogen-filled; pressure-proof up to 5 meters (16.4 ft)
-
Durable Construction: Built to withstand harsh marine environments with rugged NBR long-life rubber armor
-
Floating Neck Strap: Ensures safety and quick retrieval if dropped overboard
Specifications
Feature Specification |
Model Number
|
2343 |
Magnification |
7x |
Objective Lens Diameter |
50mm |
Field of View |
419 ft at 1000 yds |
Close Focus |
66 ft |
Exit Pupil |
7.14 mm |
Eye Relief |
20.2 mm |
Interpupillary Distance |
56 – 72 mm |
Diopter Range |
±5 dpt |
Luminosity |
51.02 |
Twilight Factor |
18.71 |
Focus System |
Auto Focus |
Optics System |
High Contrast |
Compass |
Yes, illuminated and fluid-dampened |
Eyecups |
Cylindrical |
Nitrogen Filled |
Yes |
Waterproof |
Yes – Submersible to 5 meters |
Rubber Armoring |
NBR Long Life Rubber |
Weight |
30 oz |
Dimensions |
5.5 x 8.2 x 8.7 in |
Neck Strap |
Floating Strap |
Neck Strap Attachment |
Universal |
Objective Cover |
Yes |
Carry Case |
Yes |
Battery |
CR 1225 (for compass illumination) |
Special Features |
Open-Bridge-System |
Warranty |
Steiner Heritage™ Warranty |
